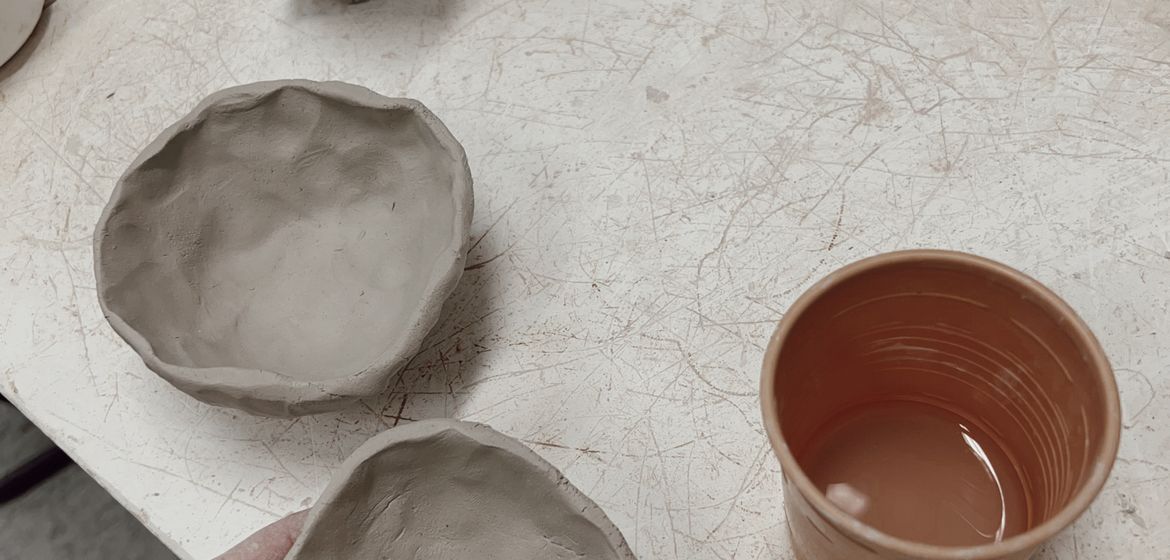

Why the Clay You Pick Matters More Than You Think

When you first walk into a pottery class or unwrap your first bag of clay, it is tempting to grab whatever looks nicest and get on with it. But the clay you choose sets almost everything that follows: how the material behaves on the wheel, how much it shrinks, which glazes will fit it, and how the finished pot copes with a hot mug of tea or a frosty night in the garden. For beginners in the UK, most studio work comes down to two families — earthenware and stoneware — and understanding the difference will save you a good deal of heartbreak.

Earthenware: The Friendly Low-Fire Clay

Earthenware is the oldest and arguably the kindest clay for beginners. It fires between roughly 1000°C and 1150°C, which means the kiln does not have to work especially hard and the firing cycle is shorter and cheaper. It is typically red, orange or buff in colour — terracotta is the classic example — and it stays porous after firing, because it never reaches the point of vitrification.

That porosity matters. An unglazed earthenware pot will weep water, so anything meant to hold liquid needs a good glaze, applied evenly and fired to the correct temperature. On the plus side, earthenware glazes melt readily and take colour beautifully, which is why you see such bright, glossy reds, turquoises and yellows on low-fired work. If you want to try tin-glaze decoration or painted majolica-style surfaces, this is the clay for it. Earthenware also responds well to hand-building: it is plastic, forgiving and easy to join with slip.

Stoneware: The Durable All-Rounder

Stoneware fires much hotter, usually somewhere between 1200°C and 1300°C. At those temperatures the clay body vitrifies: the particles fuse into a dense, glassy, non-porous material. The result is a strong, chip-resistant pot that holds water without a glaze (though you will still want one for hygiene and looks) and stands up to daily use, dishwashers and the occasional knock against a kitchen tap.

It is less colourful out of the bag — grey, buff, brown, sometimes speckled with iron — but it takes a wide range of glazes, from soft satin whites to rich tenmoku browns. It is a little stiffer to throw than earthenware and will test your hands more. It also shrinks more, so a bowl measured on the wheel can lose ten to twelve per cent of its diameter by the time it is glaze-fired. Do not let that put you off; it is the clay most studio potters reach for when making anything that has to work hard.

What the Kiln Does to Each One

• Temperature: earthenware bisque around 1000–1060°C and glaze around 1040–1150°C. Stoneware bisque around 1000–1100°C, with glaze firings at 1220–1280°C.
• Shrinkage: earthenware typically 5–8 per cent; stoneware closer to 10–13 per cent.
• Porosity: earthenware stays absorbent; stoneware is vitrified and effectively waterproof.
• Thermal shock: stoneware handles it far better, so ovenware and teapots are usually made from it. Earthenware can crack if taken straight from freezer to oven.
• Glaze fit: always match clay and glaze to the same firing range, or you will get crazing, shivering or a glaze that simply runs off the pot.

Matching the Clay to the Project

Once you know what you want to make, the choice usually makes itself. Choose earthenware for decorative tiles, plant pots, brightly glazed bowls and anything where colour and character matter more than toughness. It is also the cheaper route if you are paying for kiln firings by the hour. Choose stoneware for mugs, plates, casseroles, jugs, teapots and garden planters that need to survive the winter. If you are learning to throw and want pots you can genuinely use every day, stoneware is the sensible investment.

There is a third option — porcelain — but it is slick, unforgiving and expensive, and best left until you are confident with one of the two above.

Practical Advice Before You Commit

Buy a small quantity first, make a few test tiles, and fire them alongside a glaze you plan to use. Note the shrinkage and the finished colour in a notebook; every bag of clay behaves slightly differently, and supplier recipes change over time. Keep your earthenware and stoneware scraps in separate buckets — mixing them creates a body with an unpredictable firing range. Store clay somewhere cool and damp, wrapped tightly, and re-wedge it before use. Above all, remember that neither clay is "better". They simply do different jobs. Learn one properly, get comfortable with it, then try the other. Your hands will soon tell you which one you prefer.
